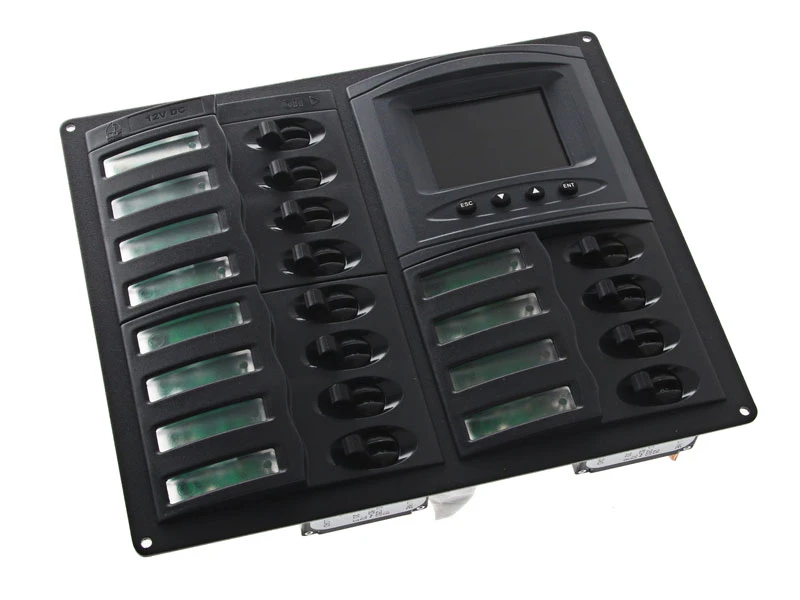

BEP Marine 12-Way Circuit Breaker DC Panel With Digital Meter

Have full and reliable control of your electrics and
electronics

The BEP Marine 12-Way Circuit Breaker DC Panel with Digital
Meter features a ‘trip free’ action that allows the
circuit to trip when an overload happens, even with the handle in
the ON position. Made specifically for marine applications,
temperature differences and harsh environmental conditions are not
a concern. Even the recesses for circuit breaker toggles that make
for a stylish touch, has been designed to prevent accidental
switching. This panel is ideal for larger trailer boats or
launches.

BEP Marine 12-Way Circuit Breaker DC Panel with Digital
Meter Features:

• Marine Grade powder coated aluminium
• Airpax magnetic hydraulic circuit breaker
• Stylish Contour Design fascia with clip
• Green LED back lighting for meters and labels
• Red LED indicates systems ‘on’
• ABYC standard voltage indication
• Backlit labels supplied

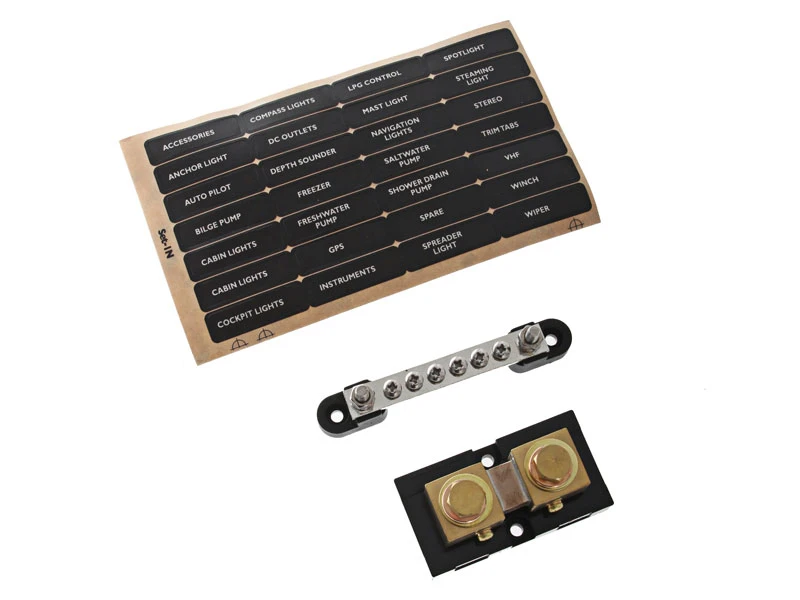

• Label sets and buss bar supplied with panels
• Double pole configurations available for survey or additional
  safety
• Digital meter can also be used as a tank monitor
• Includes DC Systems Monitor (DCSM) with:
• 8 generic user configurable inputs:
• Programmable high/low audio/visual alarms for volts, amps and
  tank levels
• Monitors charge/discharge amps for two battery banks, capacity
  remaining in A/Hrs and %, battery condition, tank fluid level and
  Circuit Status
• Digital Meters
• Ideal for larger trailer boats or launches
• Meets survey standards

BEP Marine 12-Way Circuit Breaker DC Panel with Digital
Meter Specifications:

• Panels supplied with: 450A-50mV shunt
• Negative Buss bar: 6-way
• Cut-out size: 10 mm (3/8″) inside all external edges
• Dimensions: 200 x 239 x 65 mm (7.9 x 9.4 x 2.6″)
• Label sheet: Set 1
