BEP Marine 600-GDL Gas Detector

Detects what your nose can’t

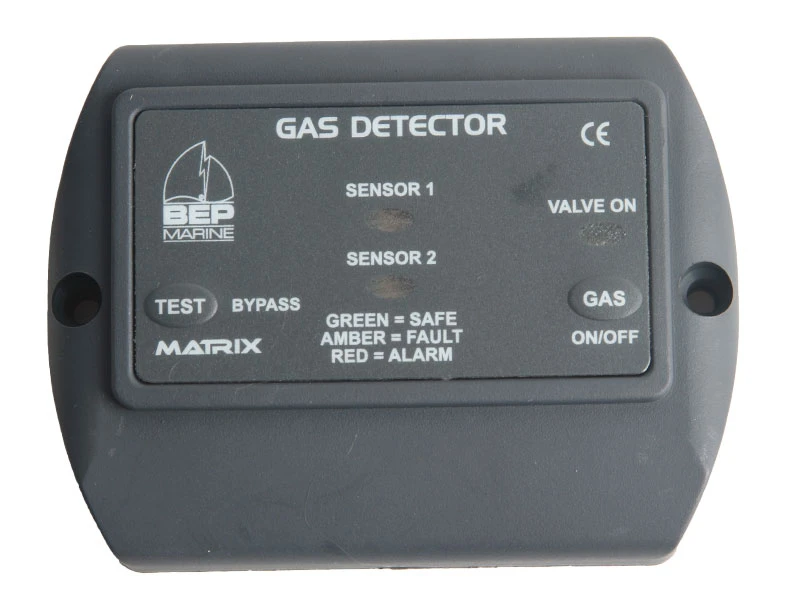

The BEP Marine 600-GDL Gas Detector is the product
of continuous research and development which BEP Marine Ltd devotes
to their product range. The BEP Marine 600-GDL Gas
Detector uses microprocessor control to ensure correct
sensor sensitivity. This detector has the capability to control two
sensors which detect both LPG and Petrol, with visual and audible
alarms. There is a test switch to check operation of sensors with
indicators for fault detection.

The BEP Marine 600-GDL Gas Detector has the same
features as the 600-GD, with the additional ability to switch a
valve on and off. The 600-GDL has a “pulse and hold” feature which
allows the solenoid valve to be opened, using full power, and then
reducing power to hold the valve in the open position. This reduces
power consumption and heat generated whilst the valve is in the on
position.

BEP Marine 600-GDL Gas Detector Features:

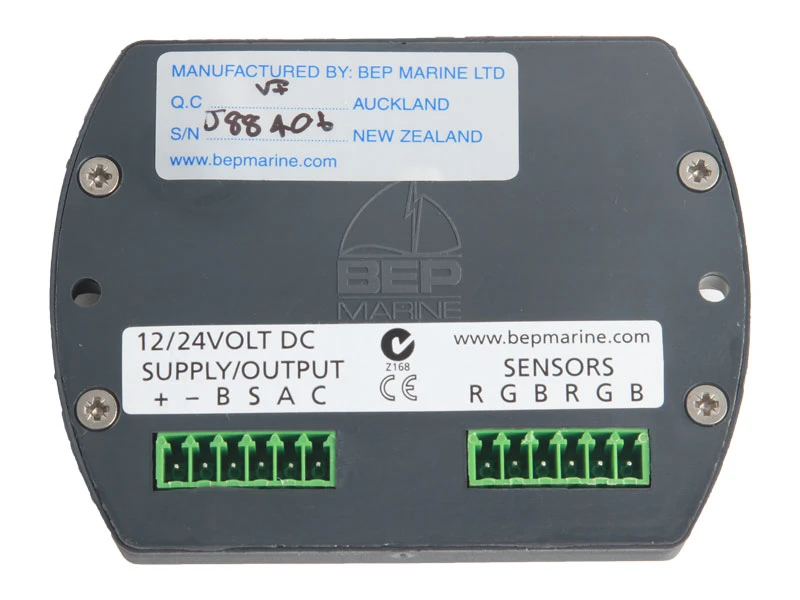

• Operating Voltage 10 to 32 Volts DC
• Self-testing capability
• Microprocessor control
• Provision for external alarm
• Automatic shut-off solenoid control with pulse and hold circuit
  for low power draw
• Provision for bilge blower
• Dual sensor capability
• Includes 1 sensor
