BEP Marine 700 Easy Fit Battery Switch

The best just keeps getting better

After the successful release of the 701, 720 and 721 battery
switches, BEP has responded to customer feedback
concerning some installations where switches need to be recessed
through varying thicknesses of panels.

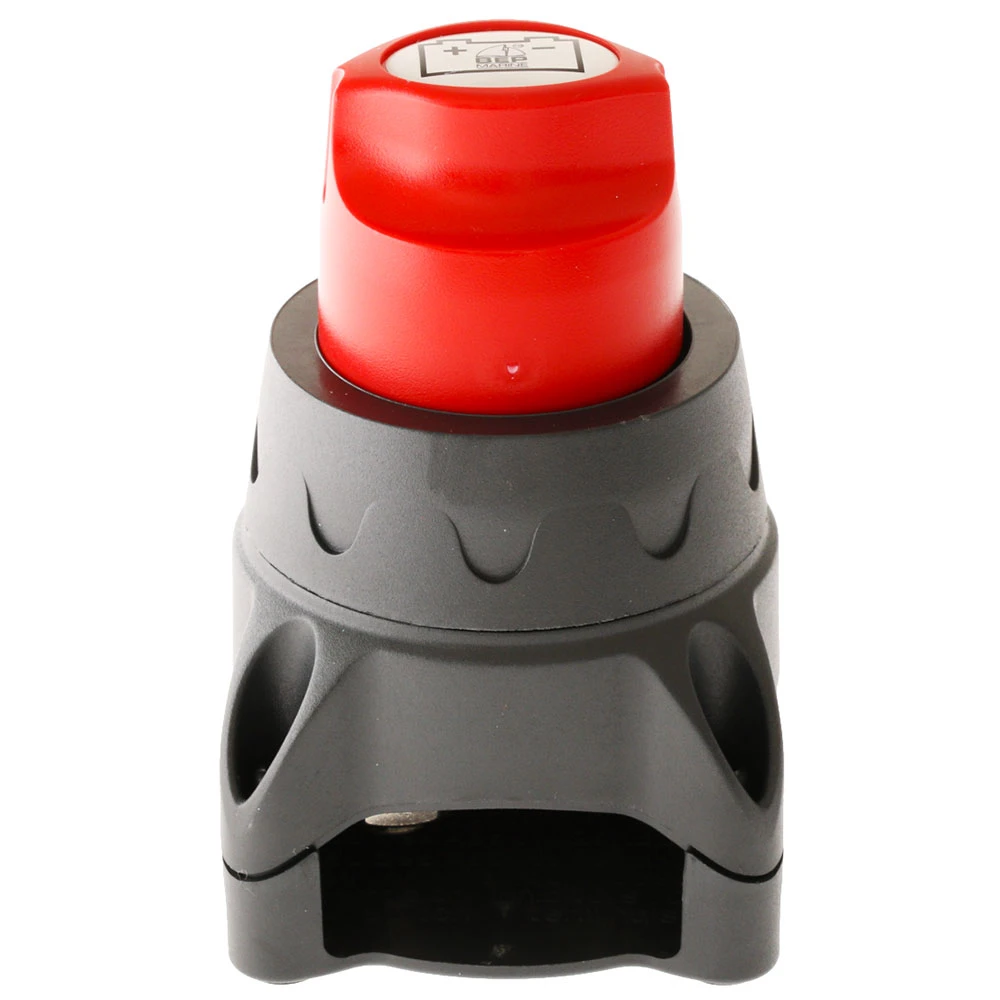

The BEP Marine 700 Easy Fit Battery Switch
achieves this through an easily removable threaded ring allowing
for panel thicknesses up to 19mm (3/4inch). It uses the same
features as the 701 with the removable key 45-degree past the off
position, labelled handle and a removable back cover covering
exposed terminals to meet ABYC specifications. The switch can also
be surface mounted offering a unique style compared to other
switches available on the market.

The BEP Marine 700 Easy Fit Battery Switch can
easily be retro – fitted in place of most European post and lever
type switches.

BEP Marine 700 Easy Fit Battery Switch
Specifications:

• Continuous Rating: 275 Amps DC
• Intermittent Rating: 455 Amps DC
• Cranking (Peak) Rating: 1250 Amps DC
• Voltage Rating: 48 Volts DC
• Operation: On/Off
• Mounting: Recessed or Surface
• Termination Stud Size: 2 x 10mm (3/8 “)
• Tin plated copper studs and nuts
• Ignition protected
