BEP Marine BEP Battery Distribution Cluster For Single Engine With Two Dedicated Battery Banks

Dual battery charging made easy!

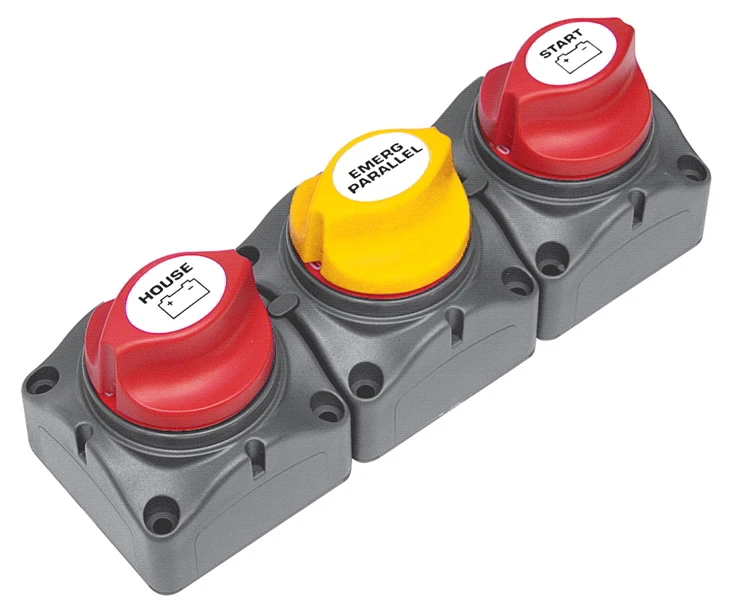

The BEP Battery Distribution Cluster For Single Engine with
Two Dedicated Battery Banks is a vertical unit to be used
in single outboard with a dual battery bank, single alternator with
a dual battery bank, or in a twin alternator with a dual battery
bank. Combining 3 of BEP’s 701 battery switches, this cluster is
the optimum battery management system for your single engined
boat.

BEP Battery Distribution Cluster For Single Engine with Two
Dedicated Battery Banks Features:

• Contour lock system, allowing it to be locked together with
  other switches
• A control knob which cannot be removed whilst in the On or Off
  position, however can be removed by switching to an anti-clockwise
  45º position
• Removable rear cover insulating the rear terminals against any
  short circuits and ensures the switch meets ABYC requirements

BEP Battery Distribution Cluster For Single Engine with Two
Dedicated Battery Banks Specifications:

• Continuous rating: 275 Amps DC
• Intermittent rating: 455 Amps DC
• Cranking rating: 1250 Amps DC
• Voltage rating: 48 Volts DC
• Operation: On / Off
• Mounting: recessed or surface
• Termination stud size: 2 x 3/8” (10mm)

Note: This product is water resistant but is
NOT designed to be submerged.
