BEP Marine BEP Battery Distribution Cluster For Twin Outboard Engine With Three Battery Banks

Dual battery charging made easy!

The 717-140A-DVSR BEP Battery Distribution Cluster For Twin
Outboard Engine with Three Battery Banks is designed for
twin engine installations. It allows the port engine to charge both
the port start battery and the house battery when the port VSR is
engaged. It also allows the starboard engine to charge both the
starboard start battery and the house battery when the starboard
VSR is engaged. This gives you a combined charge from two engines
into the house battery until the voltage regulators on both engines
control the charge. It also allows you to charge the house battery
if steaming on one engine.

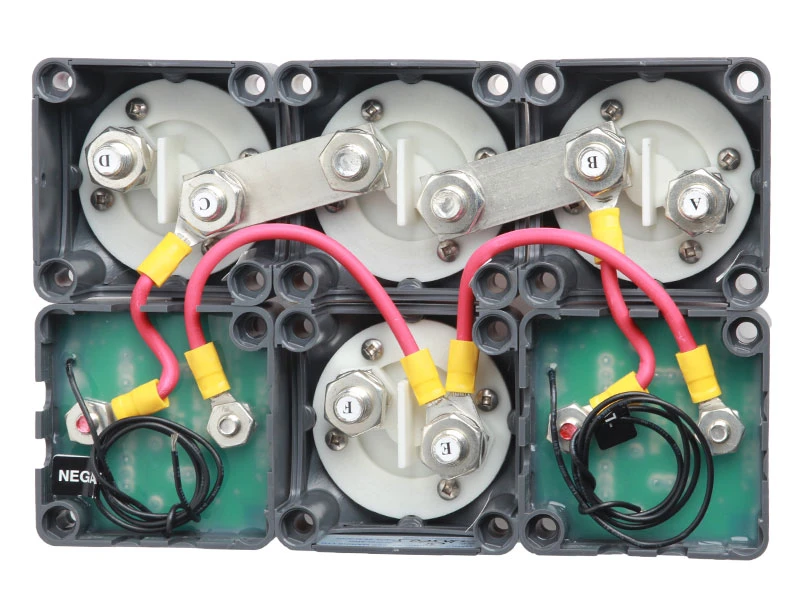

The 717 combines 4 of BEP’s 701 battery switches and 2 of BEP’s
710-125A Voltage sensitive relays (VSR).

BEP Battery Distribution Cluster For Twin Outboard Engine
with Three Battery Banks Features:

• Contour lock system, allowing it to be locked together with
  other switches
• A control knob which cannot be removed whilst in the On or Off
  position, however can be removed by switching to an anti-clockwise
  45º position
• Removable rear cover insulating the rear terminals against any
  short circuits and ensures the switch meets ABYC requirements

BEP Battery Distribution Cluster For Twin Outboard Engine
with Three Battery Banks Specifications:

• Continuous rating: 275 Amps DC
• Intermittent rating: 455 Amps DC
• Cranking rating: 1250 Amps DC
• Voltage rating: 48 Volts DC
• Operation: On / Off
• Mounting: recessed or surface
• Termination stud size: 2 x 3/8” (10mm)

Note: This product is water resistant but is
NOT designed to be submerged.
