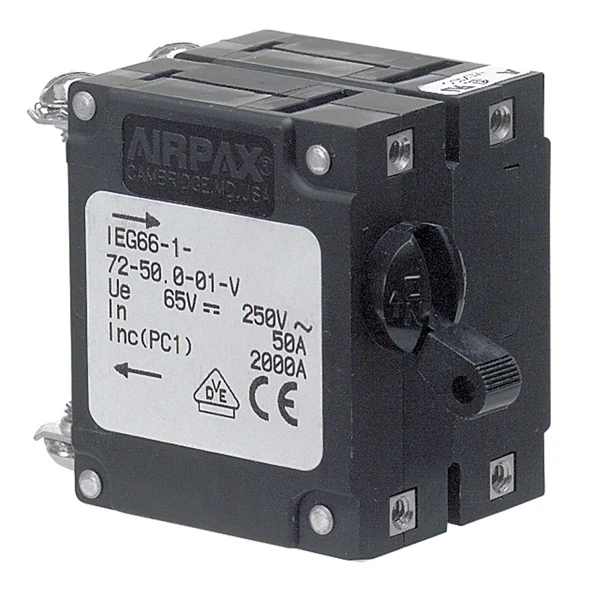

BEP Marine BEP Double Pole IEG Magnetic Circuit Breaker

IEG magnetic circuit breakers provide reliable circuit
protection and accurate circuit control for equipment in the
international market place. Designed using the latest in sensitive
hydraulic magnetic technology, the IEG line adapts itself to many
applications and environments. They are ideal for marine
applications, data processing and business machines, as well as
medical instrumentation, broadcast equipment, vending and amusement
machines, military applications and wherever precision operation is
required. Temperature differences which affect fuses and other
thermal devices are not a concern. One important feature of this
breaker line is a ‘trip free’ action, which means the circuit will
trip in the presence of an overload even though the handle is held
in the ON position. The delay mechanism senses the fault and the
contacts open.

Features:

• Spacing compliance: IEC specification 601, 950; VDE 0804,
  0805
• UL recognized; CSA certified; VDE 0660 approved; Part 101 and
  CE compliant
• Available in single or double pole; triple pole available on
  special orders
• Please Note: Part numbers shown are all BEP specific and have
  no reference to the Airpax part number system
