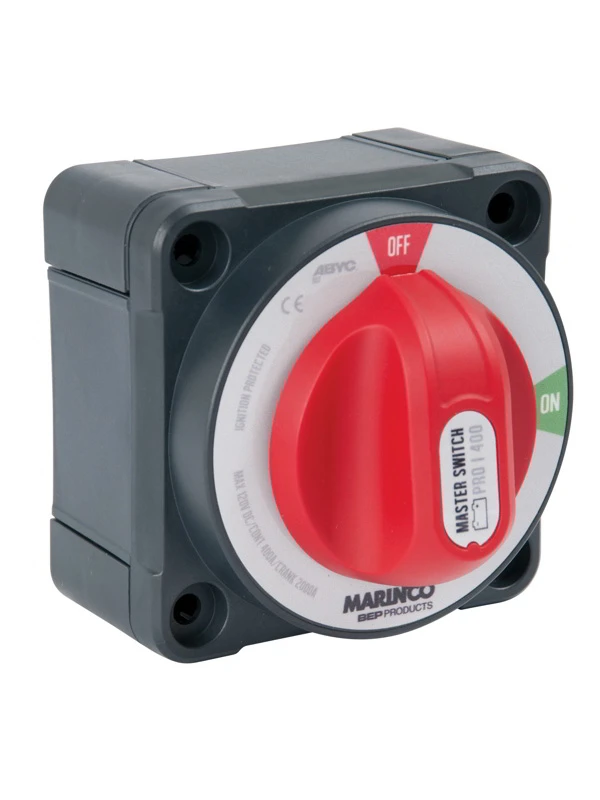

BEP Marine BEP EZ Mount Pro Installer 400A Double Pole Battery Switch – MC10

Designed to withstand harsh marine environments

The BEP EZ Mount Pro Installer Double Pole Battery
Switch is a powerful new generation battery switch with
outstanding performance and features for both the installer and end
user. Three mounting options: surface, rear panel and front panel
mounting, plus optimised cable access makes installation a breeze.
Pro Installer switches set the new benchmark with outstanding
ergonomics, intuitive look/feel, and are engineered from the finest
materials to withstand the harsh marine environment. Same industry
standard mounting with On/Off operation. Used where positive and
negative supplies must be isolated at the same time.

BEP EZ Mount Pro Installer Double Pole Battery Switch
Features:

• Industry standard footprint
• Three mounting options – surface, rear-panel and
  front-panel
• Compatible with metric and imperial mounting fasteners
• User friendly design
• Improved access for cables
• Removable knob for isolation/safety
• Includes back cover and three side panels for security and
  cable protection
• Designed to withstand harsh marine environments
• High temperature reinforced plastics

BEP EZ Mount Pro Installer Double Pole Battery Switch
Specifications:

• Continuous rating: 400A
• Intermittent rating: 600A (5min)
• Cranking rating: 1500A (10sec)
• 12-48V DC (Higher voltage applications on request)
• Connection stud size: M10 (3/8”)
• IP66 – protection from powerful water jets
• Ignition protected
• Independently tested to meet UL1107 standards
• CE marked

Note: BEP does not recommend this for
switching house and start battery systems at the same time, for
safety reasons. You may need to isolate your engine battery in an
emergency, but not your house battery which typically powers the
communications. For this application please use the new Dual Bank
Control Switch (772-DBC) or one of BEP’s battery switch clusters.
Note: 770-DP is replacing 720-DP. Mounting bolts sold
separately.
