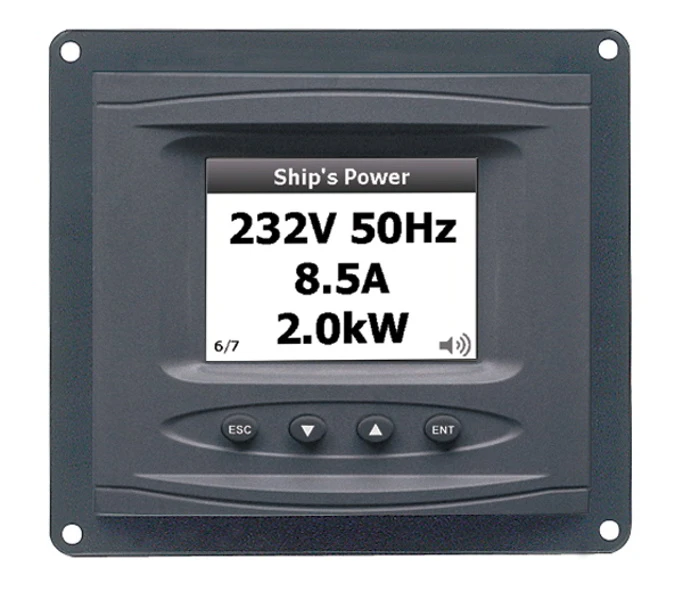

BEP Marine BEP Panel Mounted AC Systems Monitor

The contour digital BEP Panel Mounted AC Systems
Monitor offers comprehensive monitoring for your AC system
from standard single line inputs to twin line systems as used in
the USA (no need for additional selector switch for AC inputs). The
Meter is supplied with an AC transducer, Part No: AC-VSEN and
current transformer Part No: CT-10-3. A larger CT, Part No: CT-HD,
is also available where cables are too large to pass through the
standard CT. Selectable legends allow full information to be shown
on the screen to avoid confusion, unlike other digital meters
available, which only show confusing digits. LCD screen draws 70%
less than equivalent LED screens.

BEP Panel Mounted AC Systems Monitor Features:

• 2.8” TFT LCD 16 Bit colour screen
• 4 button user interface with white backlighting
• Voltage monitoring for up to three AC voltage inputs, 0-300V AC
  RMS
• Frequency of each AC voltage input
• Current monitoring for up to three AC current inputs, 0-120A AC
  RMS
• Selectable legends eg: Ships Power, Shore Power etc
• Hi/Low Voltage, Current and Power alarms with adjustable set
  points and snooze timers
• Load shedding relay output with adjustable set point
  times
• Adjustable backlighting, backlighting on with key press, input
  for external dimming control
• Remote alarm output
• Load shedding relay input
• Splash proof design

BEP Panel Mounted AC Systems Monitor
Specifications:

• Power Source: 8-32V DC
• Max. Current Consumption: 140mA
• Min. Current Consumption: 90mA (Powerdown)
• AC Voltage: 0-300V AC
• AC Current: 0-120A AC
• Backlighting Control Input: 0-32V DC
• Loadshed Relay Output: 1AMAX @ 12 V DC Sink to ground
• Remote Alarm Output: 1AMAX @ 12 V DC Sink to ground
• USB Specification: USB 2.0 full speed
• File System FAT: FAT32
