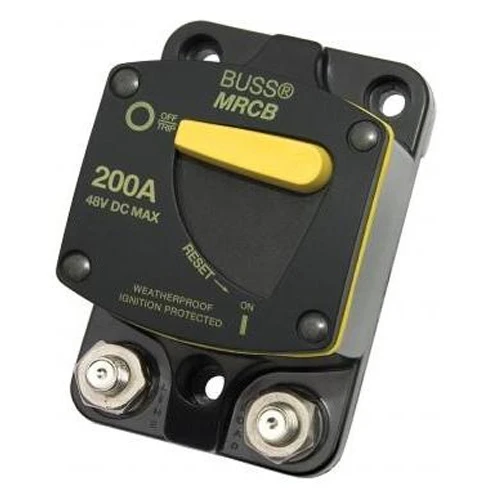

BEP Marine BEP Surface Mount Bussman 187 Circuit Breaker 200A

External ignition protected and weatherproof

The BEP Surface Mount Bussman 187 Circuit Breaker is designed for DC power systems to 48 volt where reliability and functionality for both switching and circuit protection is essential. Ideally suited to a wide range of marine, truck, bus and RV applications where add on circuit protection of accessories to 200A is required. Manufactured to comply with CE, ABYC E-11 and SAE J1171 these circuit breakers are external ignition protected, weatherproof to IP66.

BEP Surface Mount Bussman 187 Circuit Breaker Features:

• Weatherproof IP66 design
• Trip free safety feature
• Switchable circuit protection
• Ignition Protected
• CE Approved
• Rating: 25-200A, 48V DC
• Interrupt Rating: Main Breaker Protection Interrupt Rating (5,000A@ 14V DC, 3,000A@ 28V DC and 1,500A @48V DC)
• Operating Temperature Rating: -40 deg F (-40 deg C) to 185 deg F (85 deg C)
• Storage Temperature Rating: -40 deg F (-40 deg C) to 260 deg F (125 deg C)
• Materials: Black UL-rated 94V0 thermoset plastic body
• Cover and lever are UL-rated 94V0 thermoplastic
• Marking: Standard marking includes amp/volt ratings
• Termination: 5/16-18 threaded studs
• Torque Rating: 75 in-lbs (8.5Nm) max
• Mounting Torque Rating: Panel or surface-mount options; 50 in-lbs (5.6 Nm) max
• Ingress Protection Rating: IP66
• Compliances: ABYC E-11; CE; SAE J1171 (ignition protected)
• Surface/Firewall Mount
