BEP Marine Switch Panels

Designed and manufactured to the highest standards

BEP Marine Spray Proof Switch Panels feature
inline fuse holders with included fuses. The switches are rated at
20 amps DC. Choose from 3, 4, 5, or 6 switch panel
configurations.

The BEP Marine is internationally recognized as a
leading manufacturer of high quality marine electrical products. A
major supplier to boat builders around the world, BEP
Marine products are designed and manufactured to the
highest standards. As an ISO 9000 2001 certified manufacturer,
BEP guarantees consistent quality on every product
produced.

BEP Marine Circuit Breaker Switch Panel
Features:

• Compact Panel size
• Sprayproof inline fuse holders with fuses are included with all
  compact models
• Waterproof power sockets three way & five way only
• Power socket rated at 16A
• Waterproof to IP56

Part No.		Operation
SW-32111	Switch	On/Off
SW-32113	Switch	On/Off
SW-32114	Switch	On/Off/On
SW-32115	Switch	(On) Off/Momentary
SW-32120	Switch	(On) Off/Momentary
SW-32123	Switch	On/Off/On Double Power
SW-M331	Boot	Splash Proof Cover
WAFH-14		Fuse Holder
12VPG	Plug	16Amp

table.tableizer-table {border: 1px solid #CCC; font-family: Arial, Helvetica, sans-serif; font-size: 12px;} .tableizer-table td {padding: 4px; margin: 3px; border: 1px solid #ccc;}.tableizer-table th{background-color:#219DAF; color: #FFF; font-weight: bold;}

Model Number	Height (in.)	Width (in.)	Depth (in.)

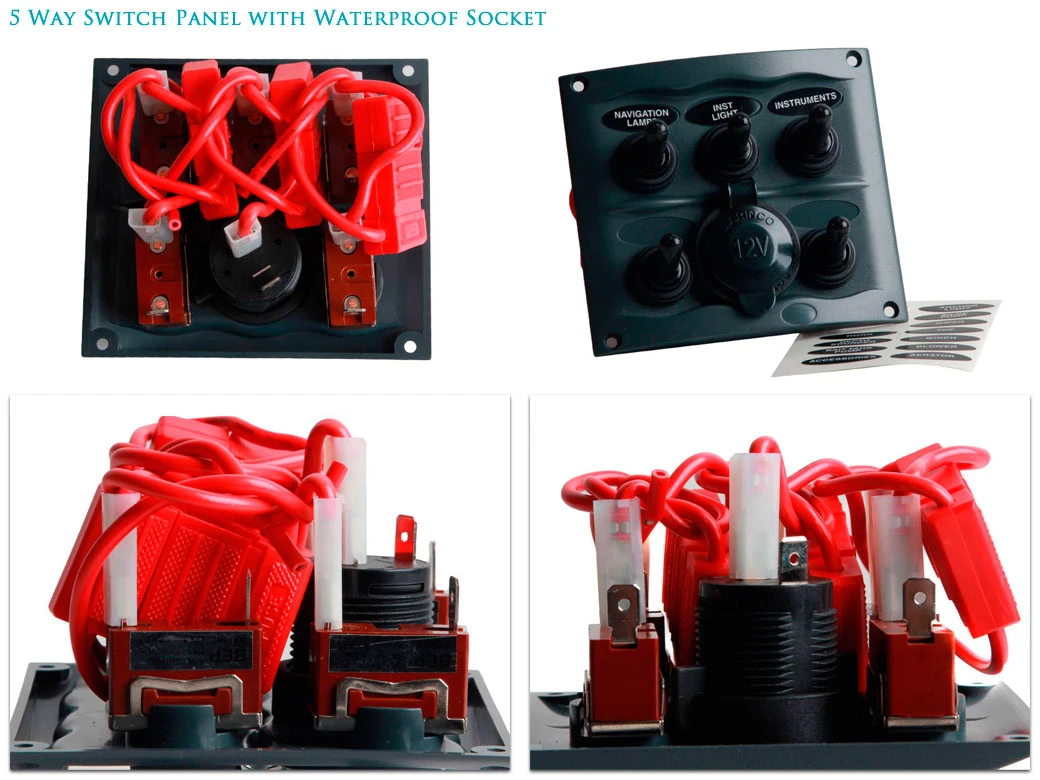

BEP Marine 5 Way Switch Panel with Waterproof Socket	3.75	4.25	2.9
BEP Marine 6 Way Spray Proof Switch Panel	3.75	4.25	2.9

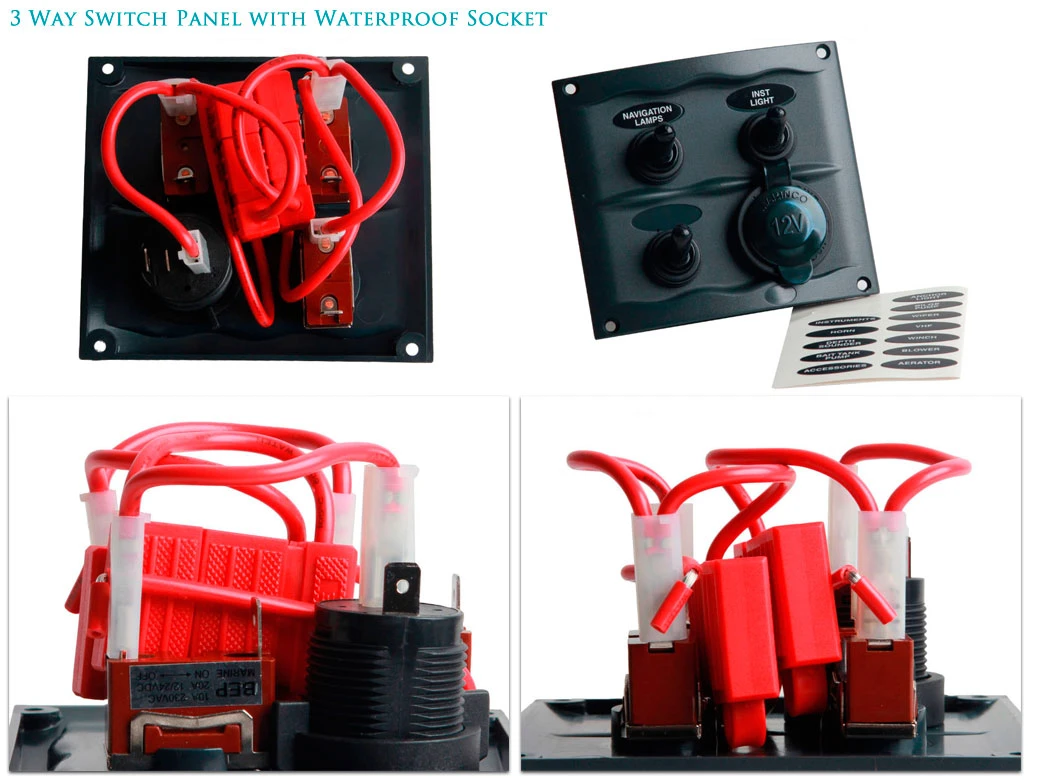

BEP Marine 3 Way Switch Panel with Waterproof Socket	3.75	4.25	2.9
BEP Marine 4 Way Switch Panel	3.75	4.25	2.9
